Installing the right gasoline particulate filter

Gasoline particulate filter, right

Courtesy of BMW OF NORTH AMERICA, INC.

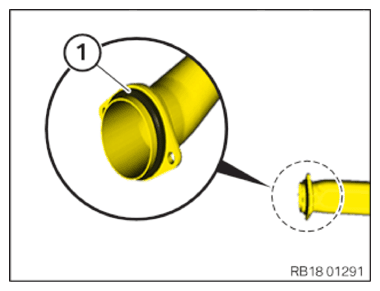

• Replace seal (1).

  Parts:  Gasket

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace nuts (1).

  Parts:  Nuts

• Tighten nuts (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Tightening torques

  Exhaust system to catalytic converter
  Nut M8	Tightening torque	10 Nm
  	Tightening torque	28 Nm

• Tighten the union nuts (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Tightening torques

  Pressure line to exhaust system
  Coupling nut	Tightening torque	20 Nm

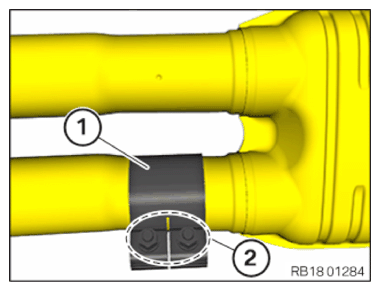

• Connect the gasoline particulate filter to the center silencer (2) with the gripper clamp.
• Center the gripper clamp (1) and tighten the nuts in the area (2).

  Tightening torques

  Courtesy of BMW OF NORTH AMERICA, INC.

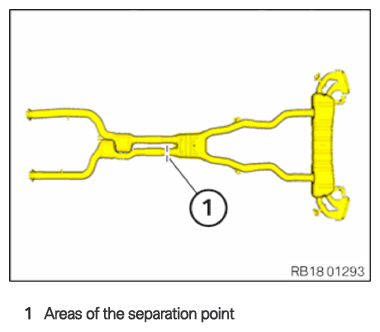

  Clamp with partial replacement of exhaust system
  Clamp	Tightening torque	45 Nm

• Make sure that the clamp (1) moves freely during operation and does not make any noise.
• Position the cross-member (2).
• Tighten nuts (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Tightening torques

  Cross-member to underfloor gasoline particulate filter
  Nut M8	Tightening torque	19 Nm

Follow-up work

• Refer to WHEN REPLACING THE GASOLINE PARTICULATE FILTER: REGISTER THE GASOLINE PARTICULATE FILTER .
• Refer to REPLACEMENT: OPERATE THE GASOLINE PARTICULATE FILTER FOR THE FIRST TIME .
