Installing the left and right gasoline particulate filters

Gasoline particulate filter, left and right

Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the seals (1).

  Parts:  Seals

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace nuts (1).

  Parts:  Nuts

• Tighten nuts (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Tightening torques

  Exhaust system to catalytic converter
  Nut M8	Tightening torque	10 Nm
  	Tightening torque	28 Nm

• Tighten the union nuts (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Tightening torques

  Pressure line to exhaust system
  Coupling nut	Tightening torque	20 Nm

• Replace nuts (1).

  Parts:  Nuts

• Tighten nuts (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Tightening torques

  Exhaust system to catalytic converter
  Nut M8	Tightening torque	10 Nm
  	Tightening torque	28 Nm

• Tighten the union nuts (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Tightening torques

  Pressure line to exhaust system
  Coupling nut	Tightening torque	20 Nm

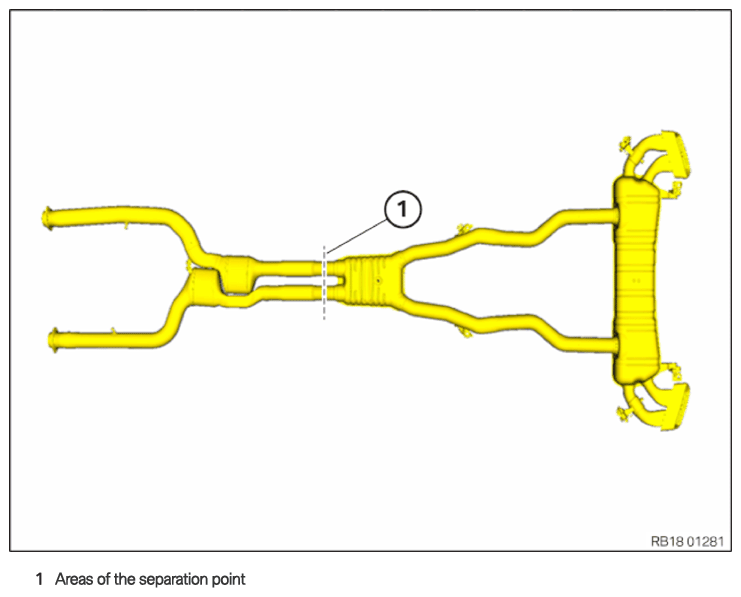

• Connect the gasoline particulate filter to the center silencer with the gripper clamps (2).
• Center the gripper clamps (1) and tighten the nuts in the (2) area.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Tightening torques

  Clamp with partial replacement of exhaust system
  Clamp	Tightening torque	45 Nm

• Make sure that the clamps (1) move freely during operation and do not make any noise.
• Position the cross-member (2).
• Tighten nuts (1).

  Tightening torques

  Courtesy of BMW OF NORTH AMERICA, INC.

  Cross-member to underfloor gasoline particulate filter
  Nut M8	Tightening torque	19 Nm

Follow-up work

• Refer to WHEN REPLACING THE GASOLINE PARTICULATE FILTER: REGISTER THE GASOLINE PARTICULATE FILTER .
• Refer to REPLACEMENT: OPERATE THE GASOLINE PARTICULATE FILTER FOR THE FIRST TIME .
