Replacing the bottom left molded hose

Prerequisite

WARNING: Hot surfaces.
Risk of burning!

WARNING: Hot fluids.
Risk of scalding!

Conduct all work in the vehicle wearing appropriate personal protective equipment only.

Preliminary work

NOTE: TECHNICAL INFORMATION
Wear safety goggles.

NOTE: TECHNICAL INFORMATION
Wear protective gloves.

Courtesy of BMW OF NORTH AMERICA, INC.

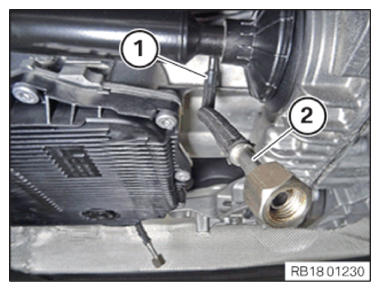

Use a knife to cut open the preformed hose in the area (1).
Replace the pressure pipe with union nut (2).
Parts: Pressure pipe, union nut
Replace molded hose.
Parts: Molded hose

Only low-surface-tension water is permitted for the installation.

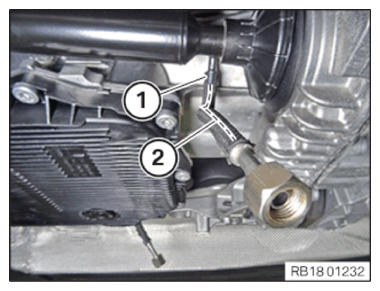

Ensure that molded hose (1) is laid as shown in area (2).

Courtesy of BMW OF NORTH AMERICA, INC.
