Remove fuel filler pipe

Preliminary work

• Refer to SUCTION THE FUEL TANK .
• Refer to REMOVING THE REAR RIGHT WHEEL .
• Refer to REMOVE RIGHT REAR WHEEL ARCH COVER .
• Refer to REMOVE RIGHT TANK COVER .

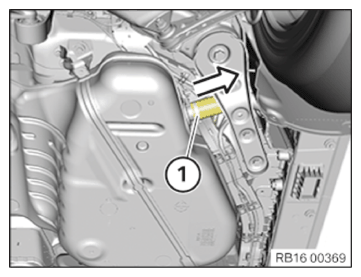

• Loosen hose clamp (1).
• Detach the fuel filler hose from the fuel tank in the arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

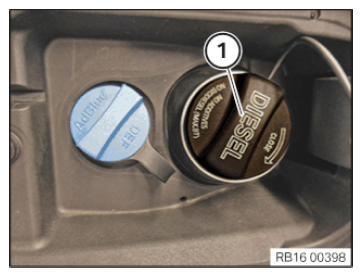

• Open sealing cap (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

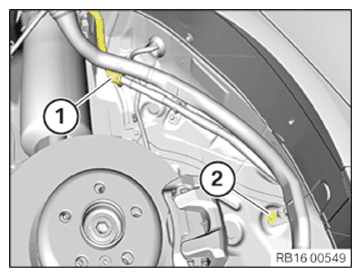

• Unlock and detach the snap fastener (1).
• Loosen nut (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

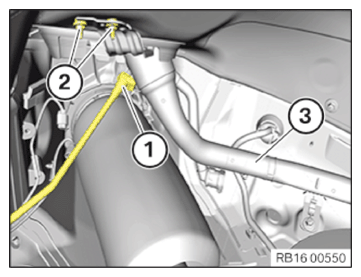

• Unlock and detach the snap fastener (1).
• Release nuts (2) and remove the fuel filler pipe (3).

Courtesy of BMW OF NORTH AMERICA, INC.
