Remove Natural Vacuum Leak Detection (Natural Vacuum Leak Detection) pressure switch

Preliminary work

• Refer to REMOVING THE REAR RIGHT WHEEL .
• Refer to REMOVE RIGHT REAR WHEEL ARCH COVER .

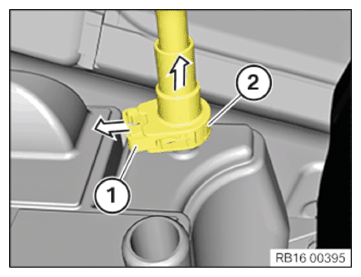

• Unlock the locking tab (1) towards the bottom.
• Operate push-button (2) and detach tank vent line.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Detach tank vent line (1) from holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Disconnect plug connection (1).
• Release nuts (2) and remove pressure switch (3) with dust filter and tank vent line.

Courtesy of BMW OF NORTH AMERICA, INC.
