Install temperature sensor

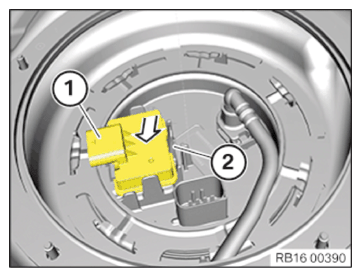

- Insert the temperature sensor (1) from the top.
- Make sure the retaining tab (2) is correctly engaged with the detent.

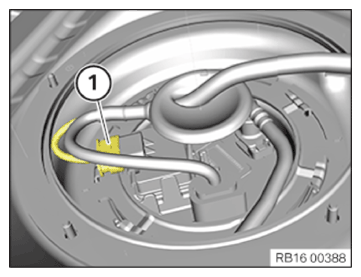

- Connect the plug connection (1).
Follow-up work
- Refer to INSTALLING THE SERVICE OPENING COVER .
- Refer to INSTALLING THE REAR SEAT BENCH .
