Installing dust filter Natural Vacuum Leak Detection (NVLD)

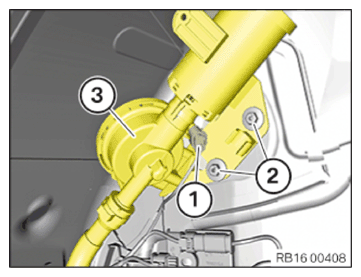

- Install pressure switch (3) with dust filter and tank vent line.
- Replace nuts (2).
Parts: Nuts
- Install the nuts (2) and tighten.
TIGHTENING TORQUES SPECIFICATION
| Pressure switch for Natural Vacuum Leak Detection (NVLD) on the body | ||
| Replace plastic nut. | Tightening torque | 4 Nm |
- Connect plug (1).

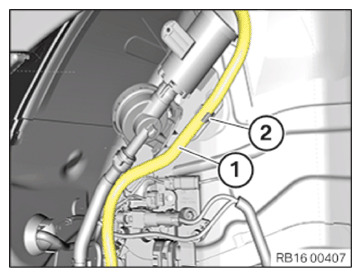

- Attach tank vent line (1) to holder (2).
- Attach tank vent line (1) and lock.
- Lock locking tab (2).
Follow-up work
- Refer to INSTALLING THE REAR WHEEL ARCH COVER ON THE RIGHT .
- Refer to MOUNTING THE REAR RIGHT WHEEL .
