Install the control unit for the fuel pump control electronics

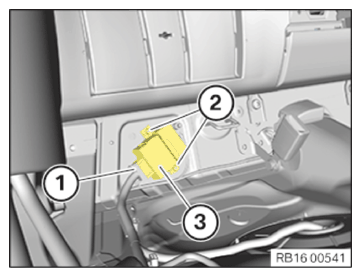

- Install the control unit for the fuel pump control electronics (3).
- Replace the plastic nuts (2).
Parts: Plastic nuts.
Position and tighten the plastic nuts (2).
TIGHTENING TORQUES SPECIFICATION
| Control unit for the electronic fuel pump control module on the body | ||
| Replace plastic nut. | Tightening torque | 4 Nm |
- Connect connector (1).
Follow-up work
- Refer to INSTALLING THE REAR SEAT BENCH .
- Refer to PUTTING THE FUEL PUMP CONTROL ELECTRONICS INTO OPERATION .
