Check fuel delivery pressure

WARNING: Working on fuel system.
Risk of fire! Danger of explosion!

When working on the fuel system, make sure the workstation has sufficient ventilation, e.g., by means of extraction.
Tightly seal off open lines and connections; collect any leakage fuel directly at the point of exit.
No fire, sparks, open flames or smoking.

CAUTION: On releasing high pressure line, fuel may emerge at high speed. Injury hazard!

Wear suitable personal protective equipment.
Before performing any installation work, allow cooling system to cool down to less than 40°C.
Note warnings on cylinder head cover.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

Unlock and loosen clamp (1).
Guide and remove cover (2) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

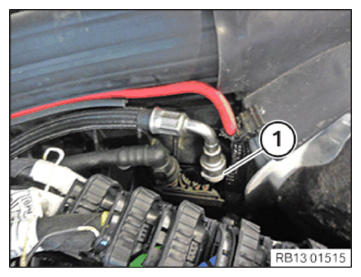

Detach the circlip (1).

Courtesy of BMW OF NORTH AMERICA, INC.

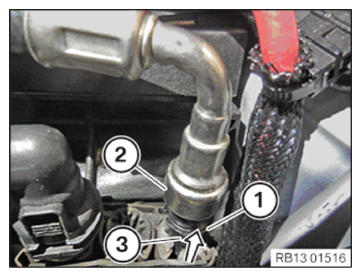

Release lock (1) arrow direction.
Release the fuel hose (2) from the fuel supply line (3).
Catch and dispose of leakage fuel.

Courtesy of BMW OF NORTH AMERICA, INC.

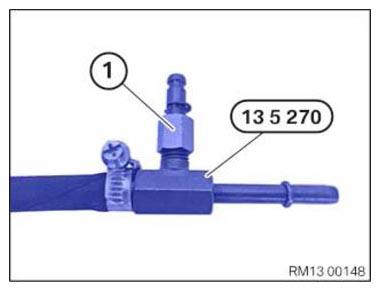

Unscrew the adapter (1) from the special tool 0 491 310 (13 5 270).

Courtesy of BMW OF NORTH AMERICA, INC.

Check

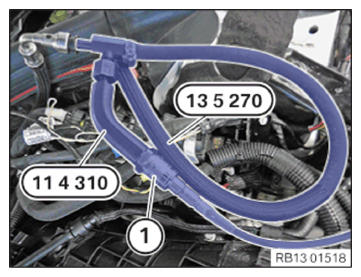

Insert the special tool 0 491 310 (13 5 270) into the disconnected fuel supply line.
Screw onto special tool 0 491 310 (13 5 270) , the special tool 0 496 623 (11 4 310).
Screw 0 496 623 (11 4 310) the IMIB 100 bar pressure sensor (1) onto the special tool.
Connect the IMIB 100 bar pressure sensor (1) to the Integrated Measurement Interface Box (IMIB).
Establish fuel delivery pressure.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

»Read the fuel delivery pressure on the Integrated Measurement Interface Box (IMIB) and compare it with the values in the diagnostic system.

Measure

Follow the instructions of the diagnostic system.
After completing the measurement, disconnect and remove the special tool 0 491 310 (13 5 270) with the special tool 0 496 623 (11 4 310) and the IMIB-100-bar pressure sensor (1) from the fuel supply line.
Catch and dispose of leakage fuel.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect the fuel hose (2) to the fuel supply line (3) in the direction of the arrow and lock.

The lock (1) must audibly engage.

Courtesy of BMW OF NORTH AMERICA, INC.

Fasten the circlip (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Slide the cover (1) in the direction of the arrow into the guide (2) and install it.
Lock clamp (3).

The clamp (3) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
