Install the high-pressure rail on the left

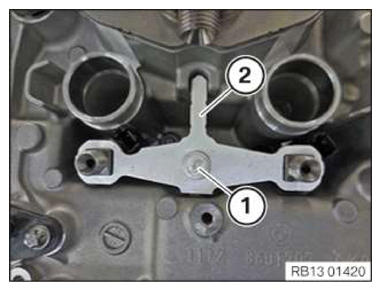

• Loosen screws (1).
• Slacken hold-down device (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Always install the high pressure line or rail free of distortion. To ensure distortion-free installation of the high pressure line and to avoid damaging the thread, it must be possible for both nuts to be screwed on to the injectors easily hand force.

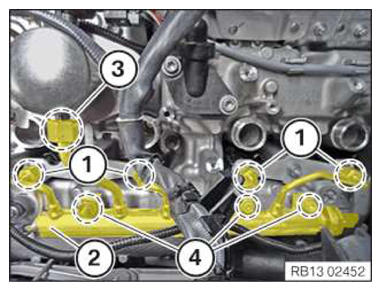

• First insert the rail (2) at the high pressure pump connector, then lower it to the point where the ball heads are positioned inside the injector connections and the rail is correctly positioned.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Hand-tighten the nuts (1) on the injectors.
• Hand-tighten the nut (3) of the high pressure pump.
• Screw in and hand-tighten the screws (4).
• Tighten down screws (4).
  TIGHTENING TORQUES SPECIFICATION



  Rail to cylinder head cover
  M6x25 screw	Tightening torque	10 Nm

  NOTE: The description is for one component only. The procedure is identical for all further components.
• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Hold-down device to cylinder head cover
  screw	Tightening torque	13 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten nuts (1) on the injectors with the special tool 0 491 277 (13 5 020)  .
  TIGHTENING TORQUES SPECIFICATION



  High-pressure rail to injectors
  Nuts	Tightening torque	23 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten nut (3) on the high pressure pump with the special tool 0 495 908 (37 1 150)  .
  TIGHTENING TORQUES SPECIFICATION



  Fuel supply line/rail to high pressure pump
  Nut	Tightening torque	30 Nm

• Tighten down screws (4).
  TIGHTENING TORQUES SPECIFICATION



  Rail to cylinder head cover
  M6x25 screw	Tightening torque	10 Nm

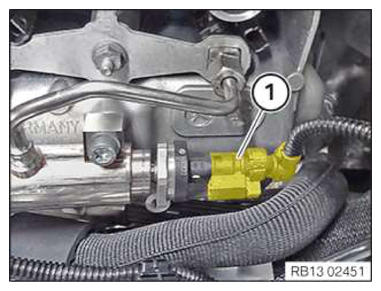

• Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALL THE IGNITION COILS OF CYLINDER BANK 2 .
• Refer to ATTACHING COOLANT EXPANSION TANK .
• Refer to INSTALLING THE CONTROL UNIT BRACKET FOR CYLINDERS 5 TO 8 .
• Refer to INSTALL CLEAN AIR PIPE, TOP .
• Refer to INSTALLING THE COVER OF THE LEFT DME CONTROL UNIT .
• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
