Install the right high-pressure rail

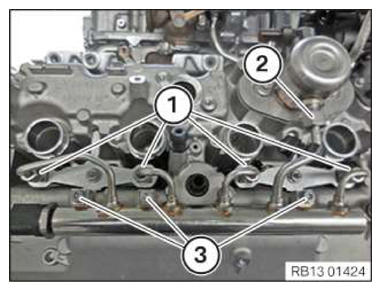

• Loosen screw (1).
• Slacken hold-down device (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Always install the high pressure line or rail free of distortion. To ensure distortion-free installation of the high pressure line and to avoid damaging the thread, it must be possible for both nuts to be screwed on to the injectors easily hand force.

  Courtesy of BMW OF NORTH AMERICA, INC.

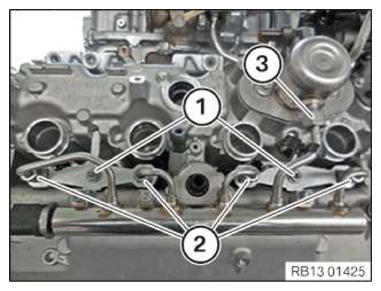

• First insert the high-pressure rail at the high-pressure pump, then lower to the point where the ball heads are positioned inside the injector connections and the high-pressure rail is correctly positioned.
• Then tighten the nuts (1) on the injectors so they are hand-tight.
• Next, hand-tighten the nut (2) of the high pressure pump.
• Lastly, mount screws (3) and hand-tighten.
• Tighten down screws (3).
  TIGHTENING TORQUES SPECIFICATION



  Rail on cylinder head cover
  M6X25	Tightening torque	10 Nm

• Tighten the screws (1) the hold-down device.
  TIGHTENING TORQUES SPECIFICATION



  Hold-down device to cylinder head
  M7	Tightening torque	13 Nm

• Tighten the nuts (2) on the injectors.

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUES SPECIFICATION



  Rail to injector
  M12	Joining torque	10 Nm
  	Tightening torque	23 Nm

• Tighten nut (3) on the high pressure pump.
