66 20 Park Distance Control (PDC)
>>
66 20 536 Removing and installing/replacing rear middle left ultrasonic sensor (Park Distance Control (PDC)) (after vehicle diagnosis) (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Removing the ultrasonic sensor at the rear left in the center
Removing the ultrasonic sensor at the rear left in the center
WARNING:
Hot surfaces.
Risk of burning!
Perform all work only on components that have cooled down.

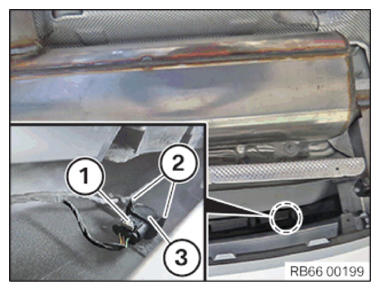

Unlock plug connection (1) and disconnect.
Unlock the latch mechanisms (2).
Remove the ultrasonic sensor (3).
Courtesy of BMW OF NORTH AMERICA, INC.
