Install the pressure sensor on the left charge air cooler
- Check the sealing ring on the pressure sensor for damage and replace the sealing ring as needed.
Parts: Sealing ring

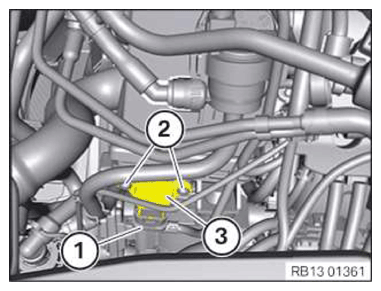

- Install the pressure sensor (3) on the charge air cooler at left.
- Tighten down screws (2).TIGHTENING TORQUES SPECIFICATION
Pressure sensor to charge air cooler TS6x12 screw Tightening torque 3.6 Nm - Connect the connector (1), it should lock audibly.
Follow-up work
- Refer to INSTALLING THE LEFT UNFILTERED-AIR DUCT .
- Refer to INSTALL THE REAR TOP CROSS CONNECTION .
- Refer to INSTALL FRONT CROSS CONNECTION .
- Refer to INSTALLING FRONT-END STRUT ON LEFT AND RIGHT .
- Refer to INSTALLING THE COVER ON THE LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP
- Refer to INSTALLING INTAKE FILTER HOUSING .
- Refer to REMOVING THE ACOUSTIC COVER .
