Installing the boost pressure sensor on the intake plenum
- Check the sealing ring (1) for damage, replace it if necessary.
Parts : Sealing ring
- Apply a thin coat of lubricant to the sealing ring (1) of the boost pressure sensor.

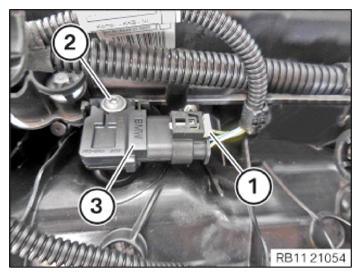

- Insert and install the boost pressure sensor (3).
- Tighten down screw (2).
TIGHTENING TORQUES SPECIFICATION
| Boost pressure sensor to intake plenum | ||
| TS6X20 | Tightening torque | 5 Nm |
- Connect and lock the connector (1).
The connector (1) must engage audibly.
Follow-up works
- Refer to INSTALLING ACOUSTIC COVER .
