Installing differential pressure sensor
NOTE:
TECHNICAL INFORMATION
Check the pressure hose on the pressure sensor and/or the differential pressure sensor. Replace hardened pressure hose. Check connection on pressure pipe and pressure sensor for leaks.
Check the pressure hose on the pressure sensor and/or the differential pressure sensor. Replace hardened pressure hose. Check connection on pressure pipe and pressure sensor for leaks.
- Feed in and install the differential pressure sensor (3) at the holder (4).
The differential pressure sensor (3) must engage audibly.
- Replace pressure hose (2)
Parts: Pressure hose

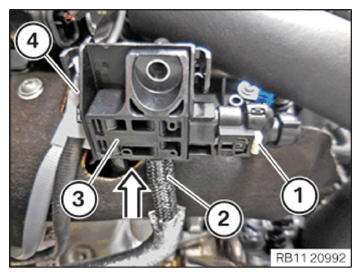

- Connect the pressure hose (2) to the differential pressure sensor (3) in the direction of the arrow until the stop.
- Connect connectors (1) and lock.
The connector (1) must engage audibly.

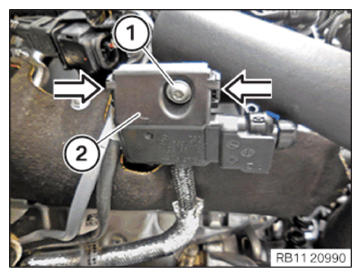

- Guide in and install cover (2).
The cover (2) must latch audibly into the locks (arrows).
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Differential pressure sensor to holder | ||
| TS6X20 | Tightening torque | 4 Nm |
Follow-up work
- Refer to INSTALL ACOUSTIC COVER .
- Refer to REPLACEMENT: ADJUSTING THE EXHAUST GAS PRESSURE SENSOR .
