Installing differential pressure sensor
NOTE:
TECHNICAL INFORMATION
Check the pressure hose on the pressure sensor and/or the differential pressure sensor. Replace hardened pressure hose. Check connection on pressure pipe and pressure sensor for leaks.
Check the pressure hose on the pressure sensor and/or the differential pressure sensor. Replace hardened pressure hose. Check connection on pressure pipe and pressure sensor for leaks.

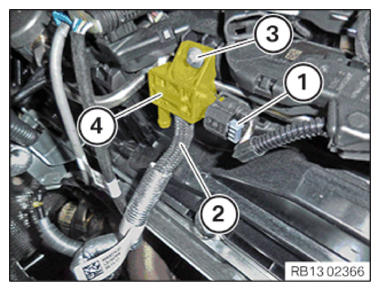

- Feed in and install the differential pressure sensor (4).
- Tighten down screw (3).TIGHTENING TORQUES SPECIFICATION
Differential pressure sensor to holder TS 6X18 Tightening torque 3.5 Nm - Replace pressure hose (2)
Parts: Pressure hose
- Insert the pressure hose (2) on the differential pressure sensor (4) until the stop.
- Connect connectors (1) and lock.
The connector (1) must engage audibly.
Follow-up work
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to REPLACEMENT: ADJUSTING THE EXHAUST GAS PRESSURE SENSOR .
