Remove charge air line

Preliminary work

• Refer to REMOVING THE ACOUSTIC COVER .
• Refer to REMOVING INTAKE SILENCER HOUSING .
• Refer to REMOVE TOP CLEAN AIR PIPE .
• Refer to REMOVE BOTTOM CLEAN AIR PIPE .

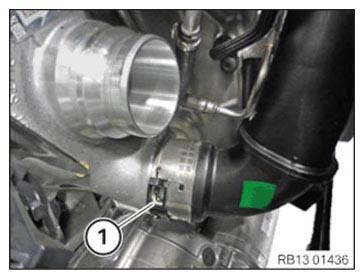

• Unlock and release charge air line (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock and loosen connector (1).
• Unlock and loosen connector (2).
• Unlock and loosen connector (3).
• Loosen screws (4).
• Guide out and remove charge air line (5).

  Courtesy of BMW OF NORTH AMERICA, INC.
