Remove air filter insert
NOTE:
DANGER
High-voltage system.
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
High-voltage system.
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
- All work on the high-voltage system may only be carried out by specially trained and technically experienced personnel.
- For additional information see:
- For additional information see:
Prerequisite
Ignition is switched off.
NOTE:
RISK OF DAMAGE
Damage to the clean air line. Damage to the air filter.
For changing the air filter insert, if the upper section of intake filter housing is only raised and not completely removed, the clean air line and the air filter insert may be damaged.
Damage to the clean air line. Damage to the air filter.
For changing the air filter insert, if the upper section of intake filter housing is only raised and not completely removed, the clean air line and the air filter insert may be damaged.
- Do not lift upper section of intake filter housing by force.
- Unfasten clamp.
- Remove upper section of intake filter housing completely.
- Unlock plug connection (1) and disconnect.
- Unfasten circlip (2).
- Loosen the screws in the direction of the arrow.
- Remove the upper section of the intake filter housing (3).

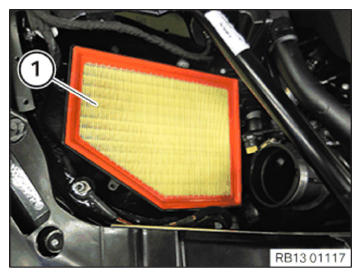

- Remove the air filter insert (1).
