Remove intake camshaft

Make sure that the exhaust camshaft bearing cap is placed in the correct position in the special tool 0 495 105 (11 4 480) .

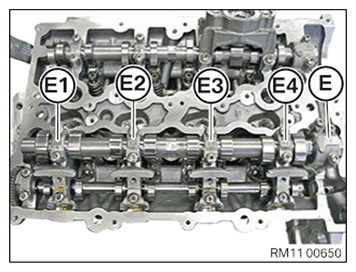

NOTE: The intake sprocket bearing caps are legibly labeled from the intake side with E1, E2, E3, E4 and E.

NOTE: Intake camshaft bearing cap E is a thrust bearing.

Courtesy of BMW OF NORTH AMERICA, INC.

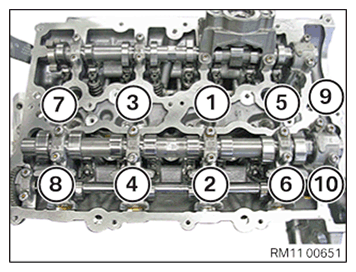

Loosen all screws on the intake camshaft bearing caps in sequence from (10) to (1) .

Fig 1: Intake Camshaft Bearing Caps Screws Loosening Sequence
Courtesy of BMW OF NORTH AMERICA, INC.

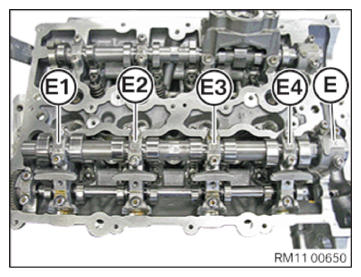

Take off intake camshaft bearing caps (E1) , (E2) , (E3) , (E4) and (E) and place them in order in the special tool 0 495 105 (11 4 480).

Courtesy of BMW OF NORTH AMERICA, INC.

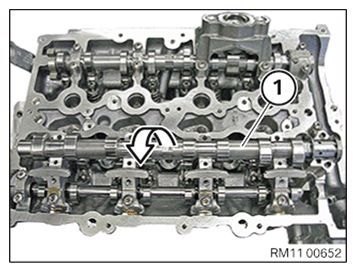

Remove the intake shaft (1) in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.
