Remove the servomotor for the eccentric shaft (cylinder head removed)
Further information is available.
NOTE:
RISK OF DAMAGE
Electrostatic discharge,
Damage to or destruction of electrical components.
Electrostatic discharge,
Damage to or destruction of electrical components.
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: NOTES ON ESD (ELECTROSTATIC DISCHARGE) PROTECTION

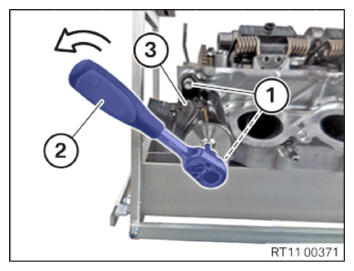

- Loosen screws (1) .
- Slow adjust the servomotor (3)
for the eccentric shaft with a standard Allen wrench (2)
with 4 mm
in the direction of arrow to minimum lift.
This releases the eccentric shaft.
Do not screw out the eccentric shaft beyond the end stop.
- Feed out and remove the servomotor (3)
for the eccentric shaft.
