Securing the collar screws M8

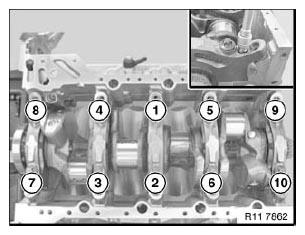

- Secure the collar screws M8 in the (1) to (10) sequence.
TIGHTENING TORQUES SPECIFICATION
| Bearing cap to crankcase (ASA collar screw 10.9) |
M8X70
Replace screw. |
Joining torque |
10 Nm |
| Angle of rotation |
55° |
