Replacing rear timing case cover

Further information is available.

Replacement: Remount crankshaft sensor

For timing case cover replacements:
Remount crankshaft sensor.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.

Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
Read and comply with user information on using the associated special tool 12 7 060.
Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
For additional information see: NOTES ON ESD (ELECTROSTATIC DISCHARGE) PROTECTION

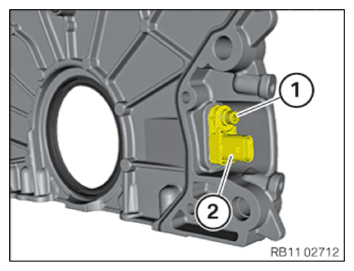

Loosen the screw (1) and remount the crankshaft sensor (2).
Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Crankshaft sensor to timing case cover
Tightening torque		4.6 Nm

NOTE: RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.

Do not use any metal-cutting tools.

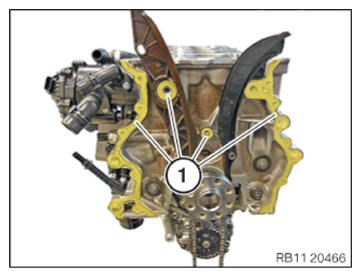

Remove the seal residue in areas (1) using special tool 0 495 102 (11 4 470) .

Courtesy of BMW OF NORTH AMERICA, INC.

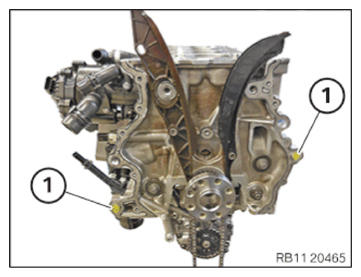

Check the fitting sleeves (1) for damage and replace as needed.
Check for correct fit of fitting sleeves (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
For additional information see: OVERVIEW OF CONSUMABLES (BMW PARTS CATALOGUE)

NOTE: TECHNICAL INFORMATION
The processing time of the liquid sealing compound can be at a maximum of 10 min.
Commissioning of the assembly is not possible until 25 minutes after the processing time.
Non-observance can lead to leaks in the assembly.

Courtesy of BMW OF NORTH AMERICA, INC.

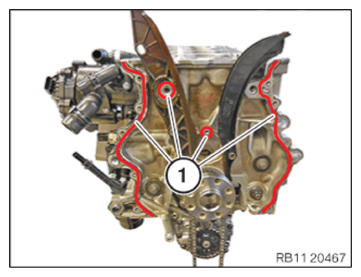

Apply the sealing compound in area (1) along the inner edge.

SEALING COMPOUND DESCRIPTION

Loctite 5970 liquid sealing compound
Processing time <10 minutes at room temperature

50 ml, Cartridge

83190404517

TECHNICAL DATA - HEIGHT OF SEALING BEAD SPECIFICATION

Height of the sealing bead
2.0 mm... 2.5 mm

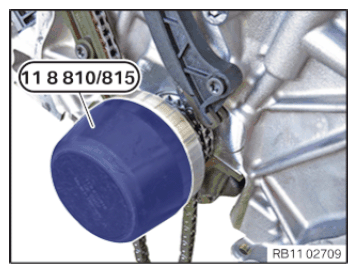

Mount special tool 0 496 137 (11 8 815) and 0 496 132 (11 8 810) on the crankshaft.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace screws (1) to (11).
Parts : Screws
Carefully mount the new timing case cover (A).
Tighten the screws in order from (1) to (11).

TIGHTENING TORQUES SPECIFICATION

Rear timing case cover on crankcase
M6 x 31 Replace screws.	Joining torque Angle of rotation	8 Nm 90°

Fig 1: Timing Case Cover Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Connect and lock the connector (1).
Make sure the connector (1) engages audibly.
