Remove the complete full-flow oil filter

WARNING: High-voltage system.
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!

All work on the high-voltage system may only be carried out by specially trained and technically experienced personnel.
For additional information see: SAFETY INSTRUCTIONS ON HANDLING HYBRID CARS .
For additional information see: NOTES ON REPAIR OF HIGH-VOLTAGE BATTERY UNIT .

WARNING: Hot surfaces.
Risk of burning!

Perform all work only on components that have cooled down.

WARNING: Hot fluids.
Risk of scalding!

Conduct all work in the vehicle wearing appropriate personal protective equipment only.

WARNING: Working on 12 V electrical system.
Risk of short circuits! Risk of fire!

Make sure that there is no charger connected to the jump start terminal in the engine compartment.
Detach battery ground lead from battery.
For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.

NOTE: RISK OF DAMAGE
Damage to battery terminal, the safety battery terminal or the intelligent battery sensor (IBS).
Damaged battery terminals can lead to malfunctions or vehicle electrical system faults.

Detach battery terminal from battery pole by carefully shifting to and fro. Do not pry off using a tool.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

Preliminary work

Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
Refer to REMOVING THE SEAL FOR THE HOOD REAR .
Refer to REMOVING THE ACOUSTIC COVER .
Refer to REMOVING ACOUSTIC COVER AT REAR .
Refer to REMOVING THE DME CONTROL UNIT .
Refer to REMOVING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
Refer to REMOVING CONTROL UNIT BRACKET .
Refer to REMOVING RESONATOR .
Refer to REMOVING CHARGE AIR LINE .
Refer to REMOVING THE ACOUSTIC COVER FOR THE ENGINE AT THE FRONT .
Refer to REMOVING THE OIL FILLER CAP .
Refer to RELEASING THE OIL FILTER COVER .
Refer to REMOVING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR AND THRUST FIELD RESPECTIVELY .
Refer to REMOVING REAR THRUST FIELD .
Refer to REMOVING REAR UNDERBODY PROTECTION .
Refer to RELEASING THE OIL DRAIN PLUG .
Refer to TIGHTENING THE OIL DRAIN PLUG .
Refer to DRAINING THE COOLANT FROM THE HIGH-TEMPERATURE COOLING SYSTEM .
Refer to DRAINING THE COOLANT FROM THE LOW-TEMPERATURE COOLING SYSTEM .
Refer to CONNECTING THE COOLANT LINES FOR THE HIGH-TEMPERATURE COOLANT CIRCUIT .
Refer to CONNECTING THE COOLANT LINE OF LOW-TEMPERATURE COOLANT CIRCUIT .
Refer to REMOVING THE THERMOSTAT FROM THE TRANSMISSION OIL LINES .
Refer to REMOVING THE HOLDER FOR THE THERMOSTAT ON THE TRANSMISSION OIL LINE .
Refer to REMOVING TANK VENT VALVE .
Refer to REMOVING THE INTAKE PLENUM .

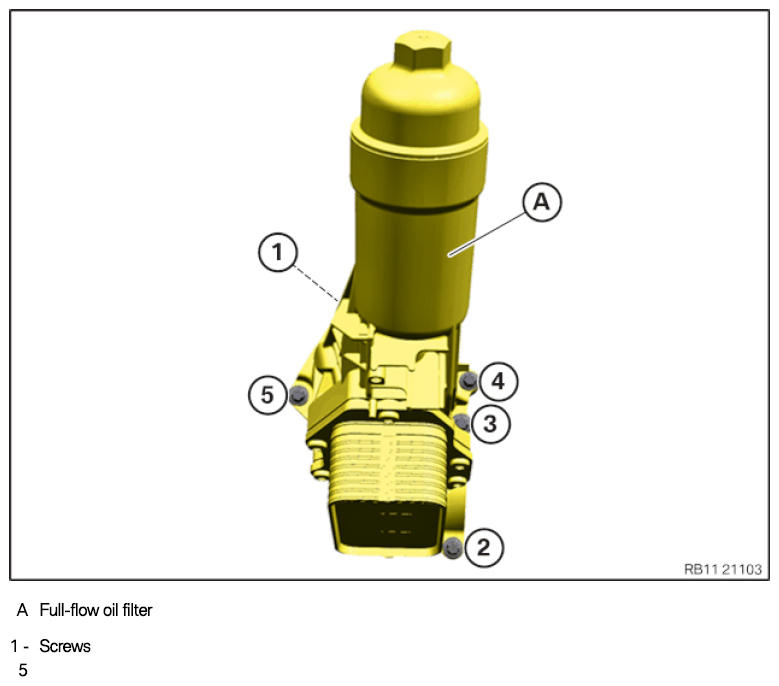

Full-flow oil filter

Courtesy of BMW OF NORTH AMERICA, INC.

Prerequisite

Disconnect all batteries.

NOTE: RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.

Adhere to the utmost cleanliness.
Protect components from contamination e.g. by covering.
Close off line connections with seal plugs.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

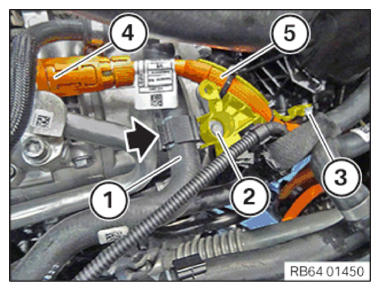

Open the holder (arrow) and remove the coolant hose (1).
Loosen screw (2).
Loosen screw (3).
Unlock and disconnect the high-voltage connector (4).
Set high-voltage cable (5) aside.

Courtesy of BMW OF NORTH AMERICA, INC.

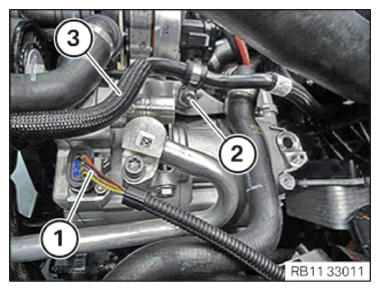

Unlock plug connection (1) and disconnect.
Loosen screw (2).
Feed out the vacuum line (3) and set it aside.

Courtesy of BMW OF NORTH AMERICA, INC.

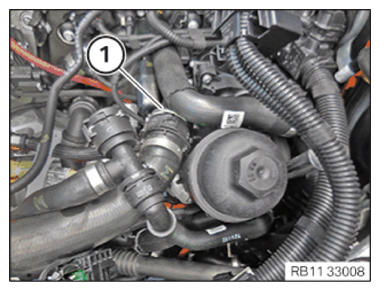

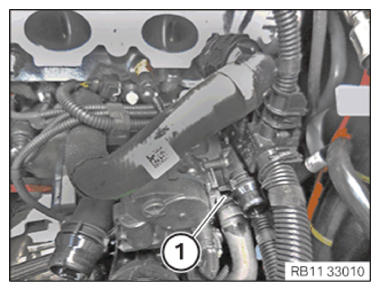

Unlock and loosen coolant line (1).

Courtesy of BMW OF NORTH AMERICA, INC.

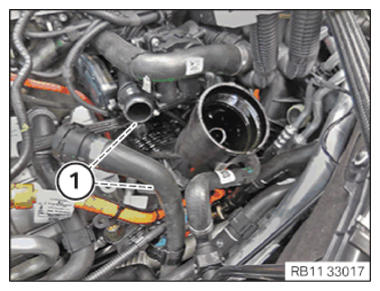

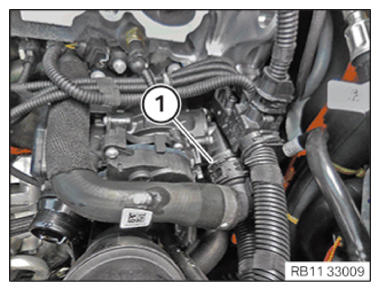

Unlock and loosen coolant line (1).

Courtesy of BMW OF NORTH AMERICA, INC.

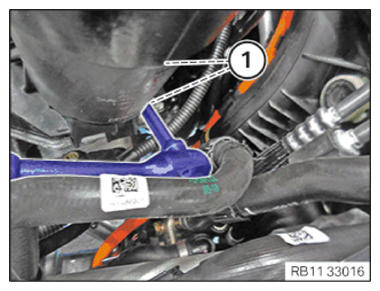

Unlock and release the coolant line (1).

Courtesy of BMW OF NORTH AMERICA, INC.

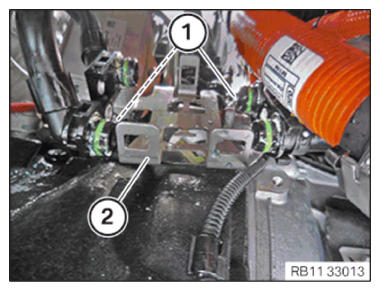

Loosen screws (1).
Guide out and remove holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

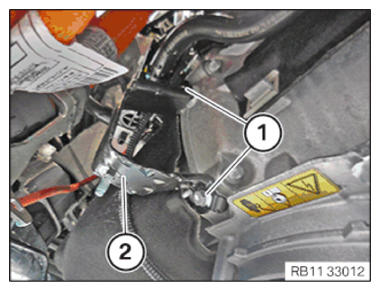

Loosen screws (1).
Guide out and remove holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).
Guide out and remove the manifold bracket (2).

Courtesy of BMW OF NORTH AMERICA, INC.

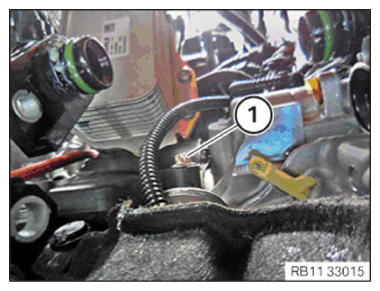

Loosen screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

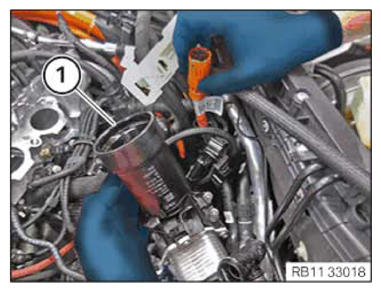

Guide out and remove the full-flow oil filter (1).

Courtesy of BMW OF NORTH AMERICA, INC.
