Installing oil feed line on exhaust turbocharger cylinders 1 to 4

• Replace O-ring.

  Parts  : O-ring

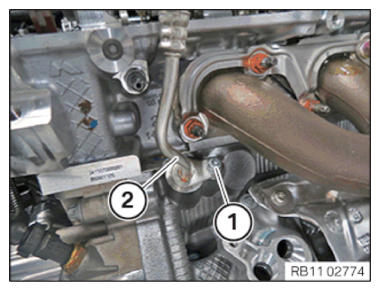

• Coat the engine oil line (2) with motor oil at the O-ring and position it in the crankcase.
• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE FRONT HEAT PROTECTION .
• Refer to FASTENING THE SCREW ON THE HEAT SHIELD ON THE FRONT RIGHT .
• Refer to FASTENING THE SCREW TO THE HEAT SHIELD AT THE FRONT LEFT .
• Refer to PUTTING ON THE DRIVE BELT .
• Refer to REMOVING SPECIAL TOOL ON BELT TENSIONER .
• Refer to SECURING THE COOLANT EXPANSION TANK IN THE HOLDERS .
• Refer to INSTALLING THE ALTERNATOR .
• Refer to REPLACING THE SEAL FOR THE EXHAUST GAS TURBOCHARGER .
• Refer to CONNECTING THE CONNECTOR TO THE WASTEGATE VALVE CONTROLLER OF CYLINDERS 1 TO 4 .
• Refer to REPLACING THE OIL RETURN LINE .
• Refer to INSTALLING EXHAUST TURBOCHARGER FOR CYLINDER 1 TO 4 .
• Refer to FASTENING THE OIL RETURN LINE ON THE OIL RETURN LID OF CYLINDERS 1 TO 4 .
• Refer to FASTENING THE BANJO BOLT FOR THE COOLANT FEED LINE TO THE EXHAUST TURBOCHARGER OF THE CYLINDERS 1 TO 4 .
• Refer to FASTENING THE BANJO BOLT FOR THE COOLANT RETURN LINE ON THE EXHAUST TURBOCHARGER OF THE CYLINDERS 1 TO 4 .
• Refer to ATTACHING THE OIL SUPPLY LINE ON THE EXHAUST TURBOCHARGER OF CYLINDERS 1 TO 4 .
• Tighten down screw (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUES SPECIFICATION



  Oil feed line to exhaust turbocharger
  M6x16	Tightening torque	10 Nm
