Installing servomotor for the eccentric shaft

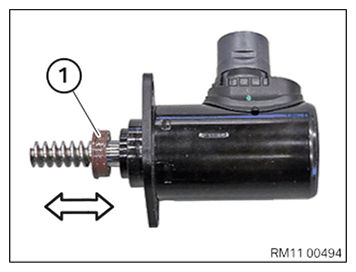

• Replace seal (1).

  Parts:  Gasket

  Courtesy of BMW OF NORTH AMERICA, INC.

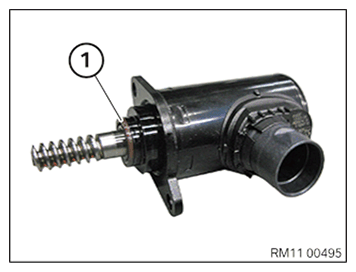

• Press the seal (1) up to the limit position on the housing.

  Courtesy of BMW OF NORTH AMERICA, INC.

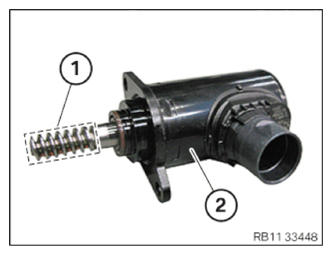

• Grease the gearing (1) of the eccentric shaft servomotor (2) in the marked  area.

Parts:  lubricating. grease

Cartridge

Courtesy of BMW OF NORTH AMERICA, INC.

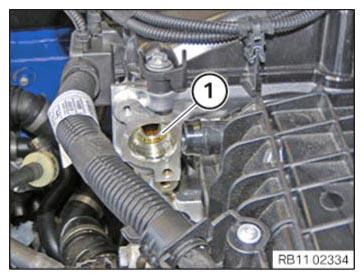

• Clean sealing surface (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert the servomotor (1) to the gearing on the cylinder head.
• Turn the drive shaft of the servomotor (1) in the direction of the arrow with a standard tool (2) until the servomotor (1) is flush with the cylinder head.

  Courtesy of BMW OF NORTH AMERICA, INC.

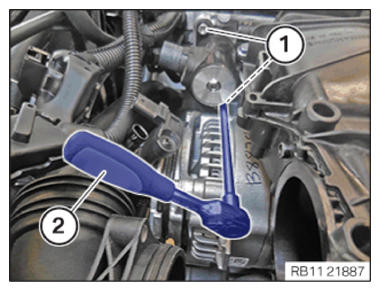

• Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

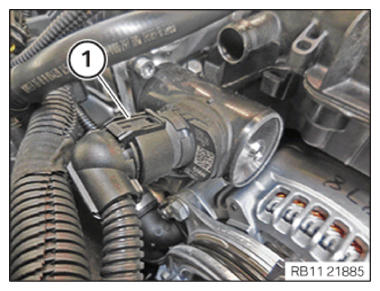

• Connect and lock the connector (1).
• Make sure the connector (1) engages audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

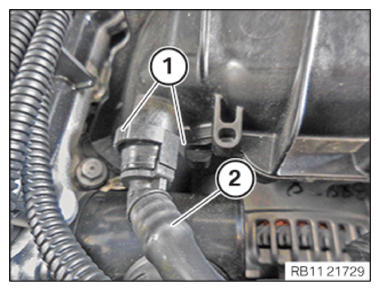

• Insert and install the tank vent line (2).
• Ensure that the locks (1) engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

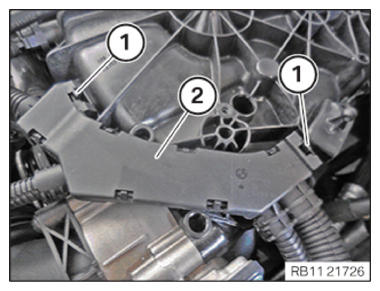

• Feed in and install wiring harness section (2) for sensor system 2.
• Ensure that the locks (1) engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up works

• Refer to INSTALLING THE THROTTLE BODY .
• Refer to PARTIALLY INSTALLING THE CHARGE AIR LINE .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to VERSION WITH ECCENTRIC SHAFT SERVOMOTOR: TEACHING IN THE END STOPS WITH THE DIAGNOSTIC SYSTEM .
