Measure the timing chain of the oil pump (2)

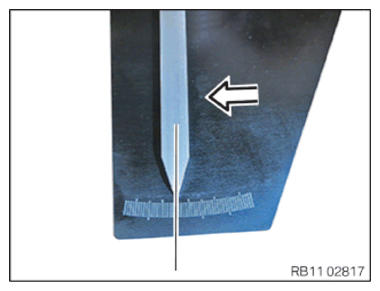

- Press the trailing pointer of the special tool 2 413 036
on the timing chain to the stop in the direction of the arrow.
TECHNICAL DATA - TIMING CHAIN OF OIL PUMP SPECIFICATION
| Adjustment value for oil pump timing chain |
| 9 +2-2
mm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
