Replacement: Preparing the intake camshaft

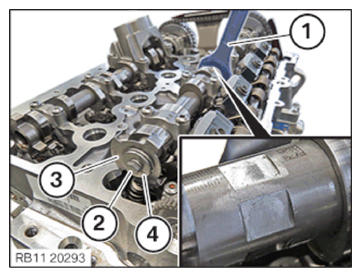

- Affix the intake camshaft with a standard open-end wrench (1).
- Loosen screw (2).
- Remove the camshaft sensor wheel (3).
- Insert and install the camshaft sensor wheel (3).
- Ensure that the camshaft sensor wheel (3) is correctly positioned on the guide pin (4).
- Affix the intake camshaft with an open-end wrench (1).
- Tighten down screw (2).TIGHTENING TORQUES SPECIFICATION
Camshaft sensor wheel to intake camshaft M6x16 Replace screw. 1. Tightening torque 5 Nm 2. Angle of rotation 90 °
