Engine - Camshaft - Repair (G30) (1 Of 3)
>>
11 31 Camshaft
>>
11 31 032 Remove and install/replace the left intake camshaft (M550i xDrive, 2018-2019)
>>
Check the Teflon ring
Check the Teflon ring

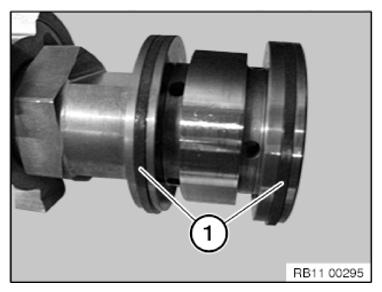

Plastic rings (1) are maintenance free and do not need to be replaced.
Check plastic rings for damage, replace if necessary.
Use a standard tool to cut through the plastic rings (1).
