Engine - Camshaft - Repair (G30) (1 Of 3)
>>
11 31 Camshaft
>>
11 31 032 Remove and install/replace the left intake camshaft (M550i xDrive, 2018-2019)
>>

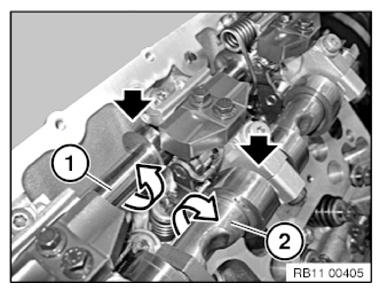

Positioning intermediate shaft and intake camshaft
Positioning intermediate shaft and intake camshaft
Adjust intermediate shaft (1) using eccentric to minimum lift.
Turn intake camshaft (2) on cam to zero lift (see graphic).
