Adjusting Night Vision camera
- Connect diagnosis system using appropriate scan tool.
Select following service functions.
- Assistance system
- Night vision electronics
- Calibration of night vision electronics camera

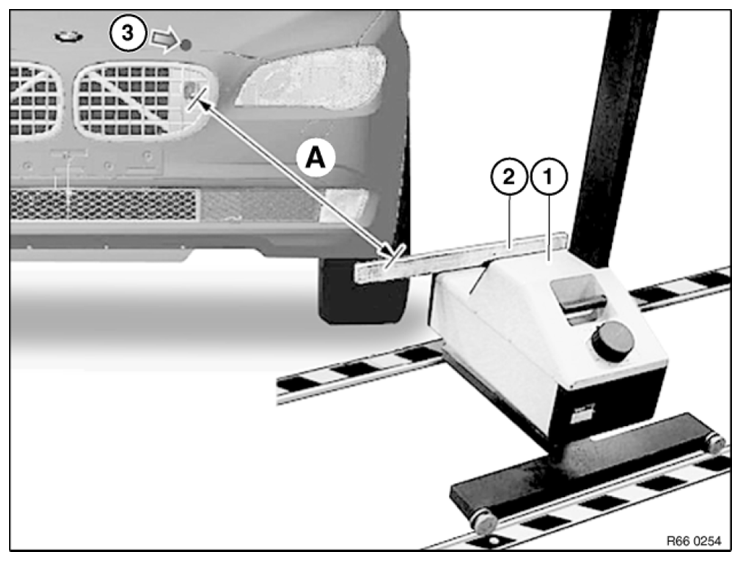

- Front of vehicle must be parallel at distance (A) to headlight aiming device (1).
(A) = 2 m.
- Align a suitable straight object (2), e.g. a spirit level, horizontally on headlight aiming device.
- Adjust Night Vision camera using diagnosis system with an applicable scan tool.

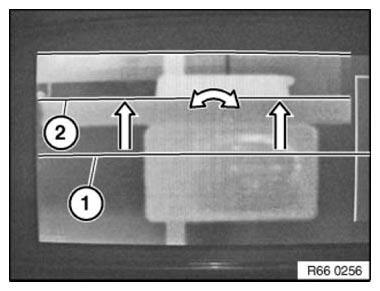

- Yellow guide line (1) is displayed with the diagnostics job.
- Upper edge (2) must be aligned using diagnosis system parallel to yellow help line (1) in the CD.
