Engine - Camshaft - Repair (G30) (2 Of 3)
>>
11 31 Camshaft
>>
11 31 036 Remove and install/replace the left exhaust camshaft (M550i xDrive, 2018-2019)
>>

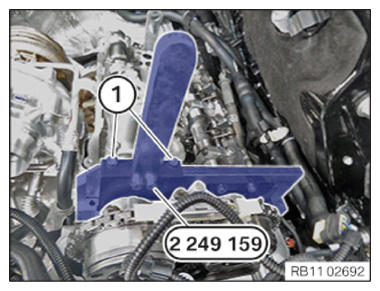

Mounting the special tool on the exhaust camshaft for cylinders 5 through 8
Mounting the special tool on the exhaust camshaft for cylinders 5 through 8
Position special tool
2 249 159
on the exhaust camshaft for cylinders 5 through 8.
Secure special tool
2 249 159
with the bolts (1) on the special tool
2 249 144
to 10 Nm.
