Removing the VANOS central valves 1 to 4 exhaust

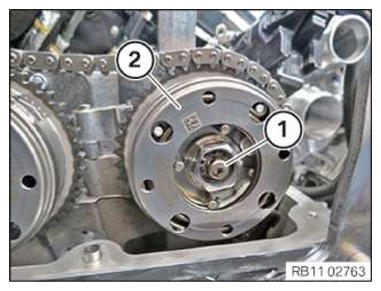

Loosen the central screw (1) of the exhaust camshaft adjuster (2).
Remove the exhaust camshaft adjuster (2).

G14240315

Courtesy of BMW OF NORTH AMERICA, INC.
