Engine - Camshaft - Repair (G30) (2 Of 3)
>>
11 31 Camshaft
>>
11 31 038 Remove and install/replace the right exhaust camshaft (M550i xDrive, 2018-2019)
>>
Insert the exhaust camshafts 1 to 4
Insert the exhaust camshafts 1 to 4
NOTE:
TECHNICAL INFORMATION
Maintain conditions of absolute cleanliness.

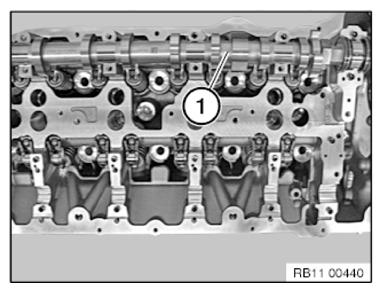

Insert the exhaust camshafts (1) as shown.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
