Remove the tensioning rail of the timing chain for cylinder 5-8

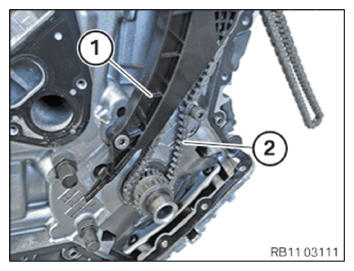

Remove the tensioning rail (1) with the timing chain (2) from the crankshaft gearing.

G14253165

Courtesy of BMW OF NORTH AMERICA, INC.
