Engine - Camshaft - Repair (G30) (3 Of 3)
>>
11 31 Camshaft
>>
11 31 052 Replacing both timing chains (M550i xDrive 2018-2019)
>>
Remove the bearing screws for cylinders 1-4
Remove the bearing screws for cylinders 1-4
NOTE:
TECHNICAL INFORMATION
Clean all threads with a screw tab.

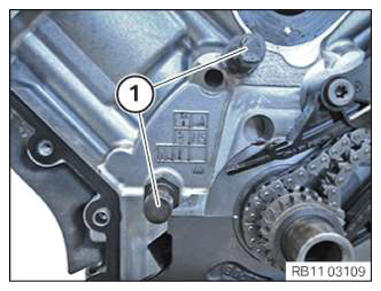

Remove the bearing screws (1).
Courtesy of BMW OF NORTH AMERICA, INC.
