Install the tensioning rail of the timing chain for cylinder 1-4

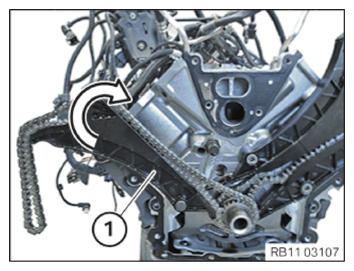

Position the tensioning rail (1) with timing chain on the gearing of the crankshaft.

G14253194

Courtesy of BMW OF NORTH AMERICA, INC.
