Install chain tensioner
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
- Drain the oil chamber in the chain tensioner when reusing the chain tensioner.

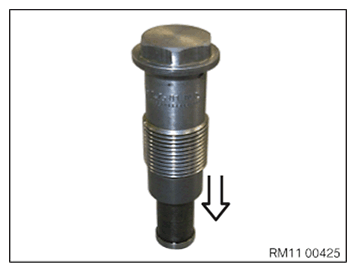

- Place the chain tensioner on a level support, slowly compress in direction of arrow and relieve it.
- Catch and dispose of emerging motor oil.
- Repeat process 2 times.
- Replace the sealing sleeve (1).
Parts: Sealing sleeve

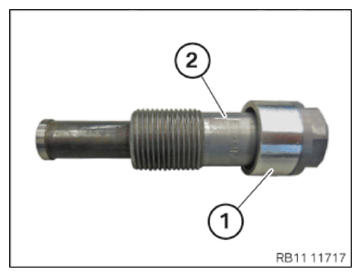

- Guide in and install the sealing sleeve (1) on the chain tensioner (2).
- Guide in and install the chain tensioner (1).
- Tighten chain tensioner (2) with commercially available tools (1).
TIGHTENING TORQUES SPECIFICATION
| Chain tensioner to cylinder head | ||
| Chain tensioner |
Joining torque | 20 Nm |
| Angle of rotation | 40° | |
Follow-up work
- Refer to INSTALL THE HOLDER OF THE POSITIVE BATTERY CABLE .
- Refer to INSTALLING THE RESONATOR WITH THE TOP CLEAN AIR PIPE .
- Refer to INSTALLING INTAKE SILENCER HOUSING .
- Refer to INSTALLING ACOUSTIC COVER AT REAR .
- Refer to INSTALL THE FRONT HOOD SEAL AT THE REAR .
- Refer to INSTALLING ACOUSTIC COVER .
