Engine - Camshaft/Rocker Arm - Repair (G30)
>>
11 31 Camshaft
>>
11 31 095 Removing and installing/replacing the hydraulic chain tensioner on the right (M550i xDrive, 2018-2019)
>>
Turn the engine backward
Turn the engine backward
Press back the chain tensioner using the tensioning rail.

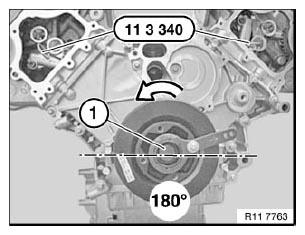

Turn the engine backward at the central bolt (1) of the crankshaft by 180° (graphic: N63O0).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
