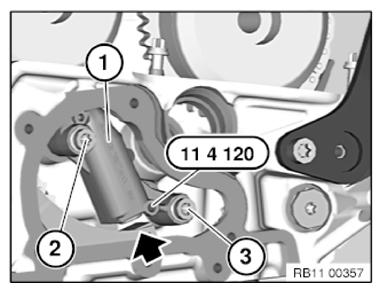

Installing the chain tensioner of cylinders 1-4
- Install the chain tensioner (1).
- Secure screws (2).
TIGHTENING TORQUES SPECIFICATION
| Chain tensioner to cylinder head |
| M7 |
Joining torque |
13 Nm |
- Detach special tool 0 491 012 (11 4 120)
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
