Install the bearing screws for cylinders 1-4 and 8-8
NOTE:
TECHNICAL INFORMATION
Clean all threads with a screw tap.
Clean all threads with a screw tap.

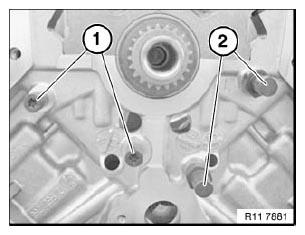

- Install bearing screws (1) and (2).
TIGHTENING TORQUES SPECIFICATION
| Bearing screws for M10 cylinders 1-4 | ||
|---|---|---|
| M10 Clean the threads with a thread cutter. |
tightening torque | 46 Nm |
TIGHTENING TORQUES SPECIFICATION
| Tensioning rail bearing screw and guide rail, cyl. 5 to 8, to crankcase | ||
|---|---|---|
| M8x1.25 | tightening torque | 20 Nm |
