Remove the gear from the crankshaft

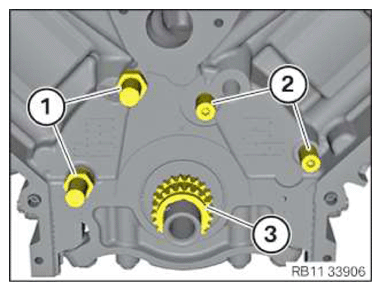

- Replace the bearing screws (1).
Parts : Bearing screws
TIGHTENING TORQUES SPECIFICATION
| Bearing screw to engine block | ||
|---|---|---|
| Bearing screw M10x1.25 Replace the bearing screw. Clean the thread in the engine block with a screw tap. |
tightening torque | 46 Nm |
- Clean the thread in the engine block with a screw tap.
- Replace the bearing screws (2).
Parts : Bearing screws
TIGHTENING TORQUES SPECIFICATION
| Bearing screw to engine block | ||
|---|---|---|
| Bearing screw M8x1.25 Replace the bearing screw. Clean the thread in the engine block with a screw tap. |
tightening torque | 20 Nm |
- Clean the thread in the engine block with a screw tap.
- Replace the sprocket wheel (3).
Parts : Camshaft sprocket

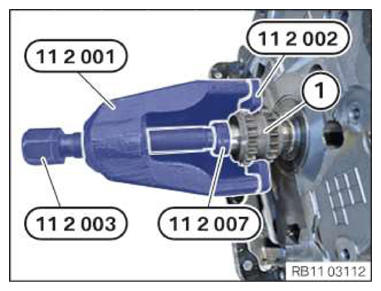

- Detach the gear (1) using the special tools 0 490 798 (11 2 000) and 0 490 798 (11 2 000) .
- Make sure that there are no metal chips or similar impurities in the area of the chain drive, clean if necessary.
