Installing the drive belt for the coolant pump

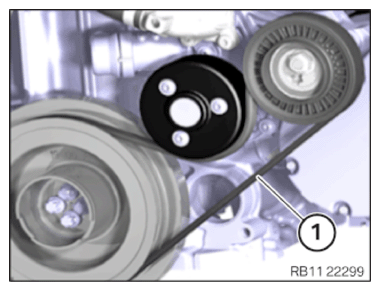

• Feed in and position the drive belt (1).

  If necessary, observe the marked direction of rotation.

  Courtesy of BMW OF NORTH AMERICA, INC.

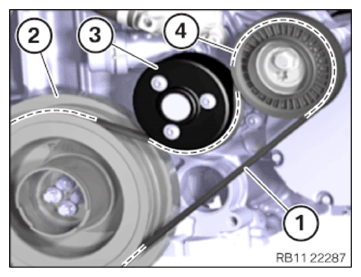

• Make sure the drive belt (1) for the coolant pump is correctly positioned at the coolant pump (3) in the marked area.
• Make sure the drive belt (1) for the coolant pump is correctly positioned at the vibration damper (2) in the marked area.
• Make sure the drive belt (1) for the coolant pump is correctly positioned at the tensioning pulley (4) in the marked area.

  Courtesy of BMW OF NORTH AMERICA, INC.

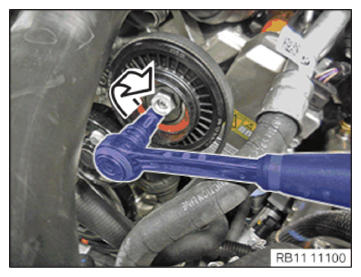

• Tighten tensioning pulley in the direction of the arrow up to the stop.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the nut (1).

  Parts: Nut

• Tighten nut (1).
  TIGHTENING TORQUES SPECIFICATION



  Nut on belt tensioner
  M10 Replace nut.	Tightening torque	38 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  Check

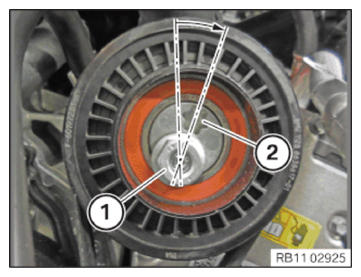

  • Check if the Torx socket (2) is located in the marked area (arrow).

  Result

  » The Torx socket (2) is outside the marked area.

  Measure

  • Tension the drive belt again.

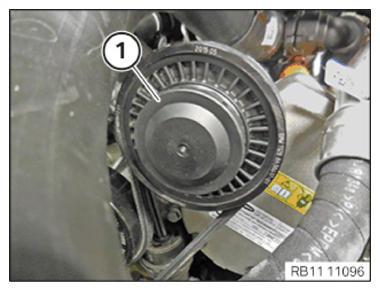

• Install the cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE ACOUSTIC COVER FOR THE ENGINE AT THE FRONT .
• Refer to INSTALLING CHARGE AIR LINE .
• Refer to INSTALLING RESONATOR .
• Refer to INSTALLING ACOUSTIC COVER .
