Removing the belt tensioner
Prerequisite
- Ignition is switched off.
CAUTION:
Component with preload.
Injury hazard!
Injury hazard!
- Reduce preload as far as possible before disassembly. Relieve component.
Preliminary work
- Refer to REMOVING THE COVER ON LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP .
- Refer to REMOVING LEFT INTAKE FILTER HOUSING WITH LEFT FRONT-END STRUT .
- Refer to REMOVING RIGHT INTAKE FILTER HOUSING WITH RIGHT FRONT-END STRUT .
- Refer to REMOVING FRONT CROSS CONNECTION .
- Refer to REMOVING THE REAR TOP CROSS CONNECTION .
- Refer to REMOVING FAN COWL .
- Refer to PARTIALLY RELEASE THE COOLANT EXPANSION TANK FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to REMOVE DRIVE BELT .

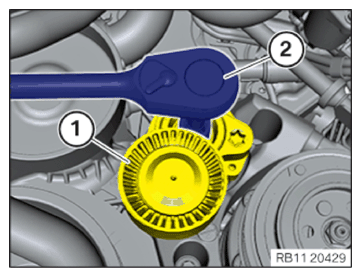

- Release the screw on the belt tensioner (1) using a suitable socket wrench (2).
- Remove the belt tensioner (1).
