Engine - Crankshaft- Repair (G30)
>>
11 21 Crankshaft With Bearing
>>
11 21 005 Removing and installing/replacing crankshaft (M550i xDrive, 2018-2019)
>>
Installation note for securing collar screws M11
Installation note for securing collar screws M11

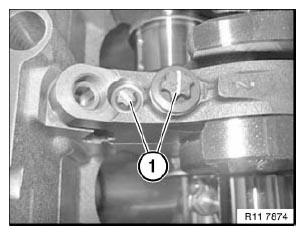

For a better overview of the quality of the screwed connections, mark all collar screws M11 with a line (1) on the screw head after positioning.
Monitor the angular tightening of collar screws M8 and M11.
