Checking the crankshaft side clearance
Check

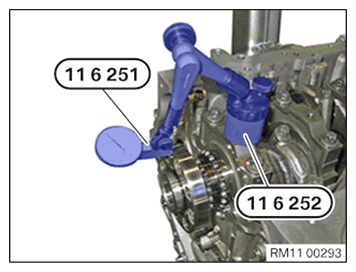

- Attach the dial gauge 0 493 144 (11 6 251) with the tripod 0 493 145 (11 6 252) to the engine and measure the side clearance of the crankshaft.
TECHNICAL DATA - AXIAL PLAY OF CRANKSHAFT SPECIFICATION
| Axial play of crankshaft | ||
|---|---|---|
| Axial play of crankshaft | 0.090 mm... 0.314 mm | |
Result
» The side clearance is exceeded.
Measure
- Replace worn components.
