Release the collar screws M11

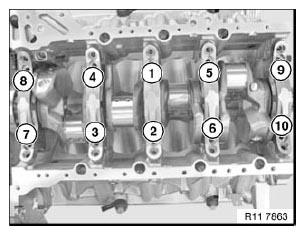

- Release the collar screws (M11) in the sequence (10) to (1).
- Remove main bearing caps (1) to (5).
NOTE:
TECHNICAL INFORMATION
The work must be performed with vehicle care to prevent component damage.
The work must be performed with vehicle care to prevent component damage.
- Remove the crankshaft with a second person, weight approx. 25 kg
- Lift out crankshaft and set down safely (secure against turning).
