Engine - Cylinder Head - Repair (G30) (1 Of 4)
>>
11 12 Cylinder Head With Lid
>>
11 12 100 Removing and installing cylinder head (530e PHEV, 2021-2022, 530e xDrive PHEV, 2021-2022)
>>
Removing the cylinder head gasket
Removing the cylinder head gasket

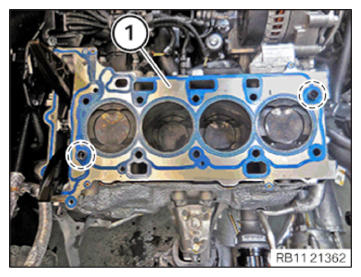

Feed out and remove the cylinder head gasket (1) in the marked area.
