Installing the trim strip for the exhaust turbocharger

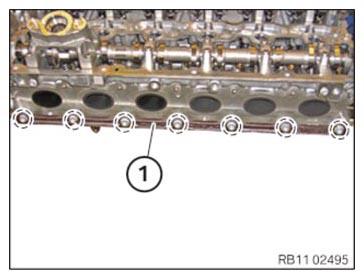

• Replace the highlighted screws.

  Parts:  screw

• Position the trim strip (1).
• Tighten the highlighted screws from the inside towards the outside.

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUES SPECIFICATION

Trim strip at the cylinder head
M7 x 27 Replace screws. Tighten from the inside to the outside.	1. Assembly torque	10 Nm
	2. Assembly torque	16 Nm
	3. Final torque	16 Nm
