Checking the position of the intake camshaft (cylinder head removed)

Check

• Check position of the intake camshaft on the respective cylinders.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

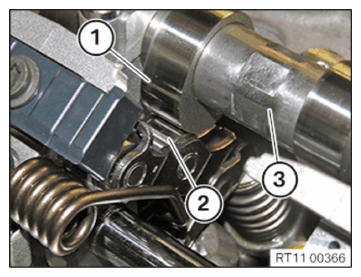

» Cam (1)  of the intake camshaft runs on the intermediate lever (2)  .

Measure

• Continue turning intake camshaft (3)  with a conventional open-end wrench until the cam (1)  does not run on the intermediate lever (2)  .
