Install all valves
NOTE:
RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
- Adhere to the utmost cleanliness.
- Protect components from contamination e.g. by covering.
- Close off line connections with seal plugs.
- Slide the valve (1) carefully
in the cylinder head.
- B46/B48:
Prepare the special tools 0 494 371 (11 9 006), 0 494 372 (11 9 007) and 0 494 373 (11 9 008) as shown.
- B58:
Prepare plastic shaped parts (1) with the shaped parts (2) and aluminum frame insert (3).
- Version B46/B48:
0 494 373 (11 9 008) for the corresponding alignment in the next step is to be prepared.
NOTE: TECHNICAL INFORMATION

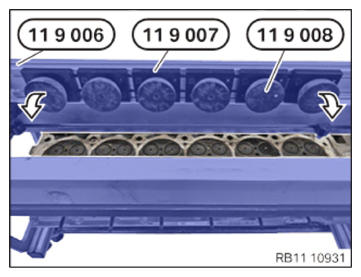

The figure shows the engine B58. - Position the special tools 0 494 371 (11 9 006)
, 0 494 372 (11 9 007) and 0 494 373 (11 9 008)
the cylinder head in the center in arrow direction.
- Turn round special tool 0 494 371 (11 9 006) and insert as shown.
- Lock the special tools 0 494 370 (11 9 005)
in arrow direction.
- Shift the special tools 0 494 370 (11 9 005)
in arrow direction via the edges of the special tools 0 494 371 (11 9 006) and lock them.
- Turn the special tool 0 494 366 (11 9 001)
(2) on the crank (1) by 180° in arrow direction.
